简介
本文主要介绍了HPM6750的控制器局域网CAN(以下简称CAN控制器)的概述以及基于HPM-SDK CAN控制器的开发指导(包括实现CAN2.0、CAN-FD)。
CAN控制器
1. 概述
CAN 是 Controller Area Network 的缩写（以下称为 CAN），是 ISO 国际标准化的串行通信协议。HPM6750 MCU搭载了4路CAN控制器，CAN0/CAN1/CAN2/CAN3，它们具有如下特性：
● 支持 CAN 2.0B 协议，支持多达 8 字节的数据载荷, 数据速率可达 1Mbit/s;
● 支持 CAN FD 协议，支持多达 64 字节的数据载荷, 数据速率可达 2.5Mbit/s;
● 支持 1 ∼ 1/256 的波特率预分频，灵活配置波特率;
● 16 个接收缓冲器;
– FIFO 方式;
– 错误或者不被接收的数据不会覆盖存储的消息;
● 1 个高优先主发送缓冲器 PTB;
● 8 个副发送缓冲器 STB;
– FIFO 方式;
– 优先级仲裁方式;
● 16 组独立的筛选器;
– 支持 11 位标准 ID 和 29 位扩展 ID;
– 可编程 ID CODE 位以及 MASK 位;
● PTB/STB 均支持支持单次发送模式;
● 支持静默模式;
● 支持回环模式;
● 支持待机模式;
● 支持捕捉传输的错误种类以及定位仲裁失败位置;
● 可编程的错误警告值;
● 支持 ISO11898-4 规定时间触发 CAN 以及接收时间戳可配置停止位：1位，1.5位或者2位。

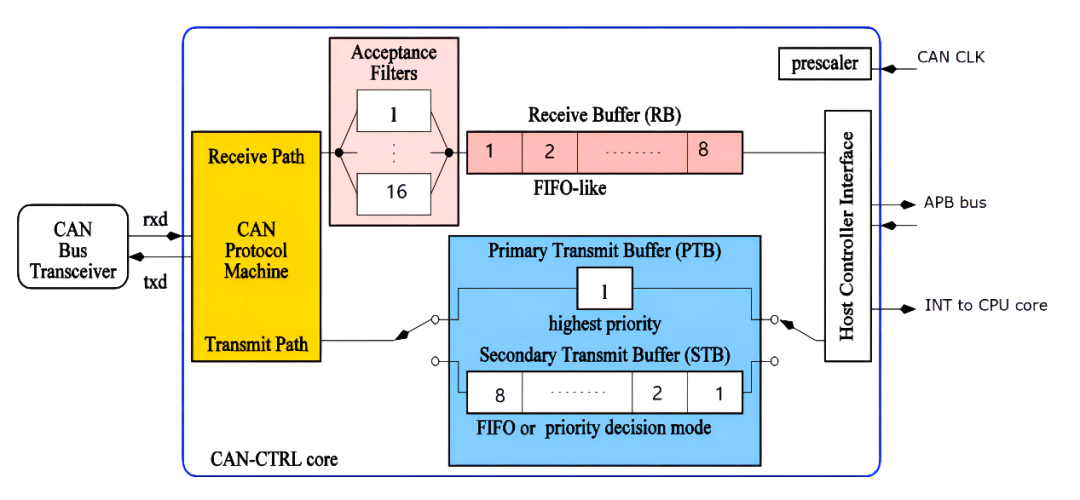

2. 系统框图

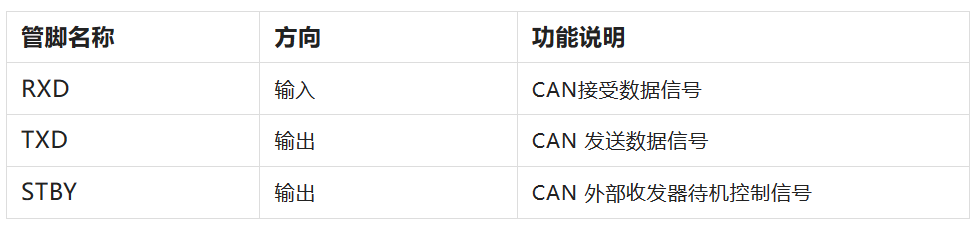

3. 管脚
CAN控制器功能开发指引
1. API功能描述
CAN开发主要使用以下接口：
//获取CAN默认配置 hpm_stat_t can_get_default_config(can_config_t *config); //CAN 初始化接口 hpm_stat_t can_init(CAN_Type *base, can_config_t *config, uint32_t src_clk_freq); //接收过滤器配置 hpm_stat_t can_set_filter(CAN_Type *base, const can_filter_config_t *config); //CAN 数据发送接口(阻塞模式) hpm_stat_t can_send_message_blocking(CAN_Type *base, const can_transmit_buf_t *message); //CAN高优先级数据发送接口(PTB 阻塞模式) hpm_stat_t can_send_high_priority_message_blocking(CAN_Type *base, const can_transmit_buf_t *message); //CAN 数据接收接口(阻塞模式) hpm_stat_t can_receive_message_blocking(CAN_Type *base, can_receive_buf_t *message); //CAN 数据接收接口(非租塞模式) hpm_stat_t can_read_received_message(CAN_Type *base, can_receive_buf_t *message); //设置发送补偿及使能(CAN-FD高速率使用，TDC) void can_set_transmitter_delay_compensation(CAN_Type *base, uint8_t sample_point, bool enable);
2. API数据结构
2.1 CAN配置
typedef struct{
union{
struct {
//当禁用use_lowlevel_timing_setting时，以下参数有效。
uint32_t baudrate; //CAN 2.0波特率设定
uint32_t baudrate_fd; // CAN-FD波特率设定，当enable_canfd使能才有效
uint16_t can20_samplepoint_min; //CAN 2.0最小采样点(0~1000)
uint16_t can20_samplepoint_max; //CAN 2.0最大采样点(0~1000)
uint16_t canfd_samplepoint_min; //CAN-FD 最小采样点(0~1000)
uint16_t canfd_samplepoint_max; //CAN-FD 最大采样点(0~1000)
};
struct {
//当启用use_lowlevel_timing_setting时，以下参数有效。
can_bit_timing_param_t can_timing; //CAN2.0 位时间参数
can_bit_timing_param_t canfd_timing; //CAN-FD 位时间参数
};
};
can_loopback_mode_t loopback_mode; //CAN回环模式，默认是正常模式
bool use_lowlevel_timing_setting; //是否启用位时间参数设定
bool enable_canfd; //是否启用CAN-FD
bool enable_self_ack; //是否启用自ACK帧
bool disable_re_transmission_for_ptb; //是否禁用高优先级PTB发送重传, false：单发模式 true:重传模式
bool disable_re_transmission_for_stb; //是否禁用STP发送重传， false:单发模式， true:重传模式
uint16_t filter_list_num; //接受过滤器list总数
can_filter_config_t *filter_list; //接受过滤器list指针
} can_config_t;2.2 CAN过滤配置
/**
* @brief CAN acceptance filter modes
*/
typedef enum _can_filter_mode {
can_filter_mode_both_frames, //标准格式和扩展格式过滤选模式
can_filter_mode_standard_frames, //标准格式过滤模式
can_filter_mode_extended_frames, //扩展格式过滤模式
} can_filter_mode_t;
/**
* @brief CAN acceptance configuration
*/
typedef struct {
uint16_t index; //过滤器index
can_filter_mode_t mode; //过滤器模式
bool enable; //过滤器是否使能
uint32_t code; //ID code
uint32_t mask; //ID mask
} can_filter_config_t;2.3 CAN发送
/**
* @brief CAN transmit buffer data structure
*/
typedef union _can_tx_buf {
uint32_t buffer[18]; //发送 buffer，由于是联合体，和下面的共享一块内存区域，buffer大小：4*18=72
struct {
struct {
uint32_t id: 29; //CAN ID
uint32_t : 1;
uint32_t transmit_timestamp_enable: 1; //时间戳使能
};
struct {
uint32_t dlc: 4; //数据长度
uint32_t bitrate_switch: 1; //bitrate开关
uint32_t canfd_frame: 1; //can-fd标识位
uint32_t remote_frame: 1; //remote 标识位
uint32_t extend_id: 1; //扩展ID
uint32_t : 24;
};
uint8_t data[]; //数据指针
};
} can_transmit_buf_t;2.4 CAN接收
/**
* @brief CAN receive buffer data structure
*/
typedef union _can_rx_buf {
uint32_t buffer[20]; //接收buffer，由于是联合体，和下面的数据共享一块内存区域
struct {
struct {
uint32_t id: 29; //can id
uint32_t : 1;
uint32_t error_state_indicator: 1; //错误状态指示
};
struct {
uint32_t dlc: 4; //数据长度
uint32_t bitrate_switch: 1; //bitrate开关
uint32_t canfd_frame: 1; //canfd 标识
uint32_t remote_frame: 1; //remote标识
uint32_t extend_id: 1; //扩展ID
uint32_t : 4;
uint32_t loopback_message: 1; //回环数据标识
uint32_t error_type: 3; //错误类型
uint32_t cycle_time: 16; //cycle time
};
uint8_t data[]; //数据指针
};
} can_receive_buf_t;3. 配置流程

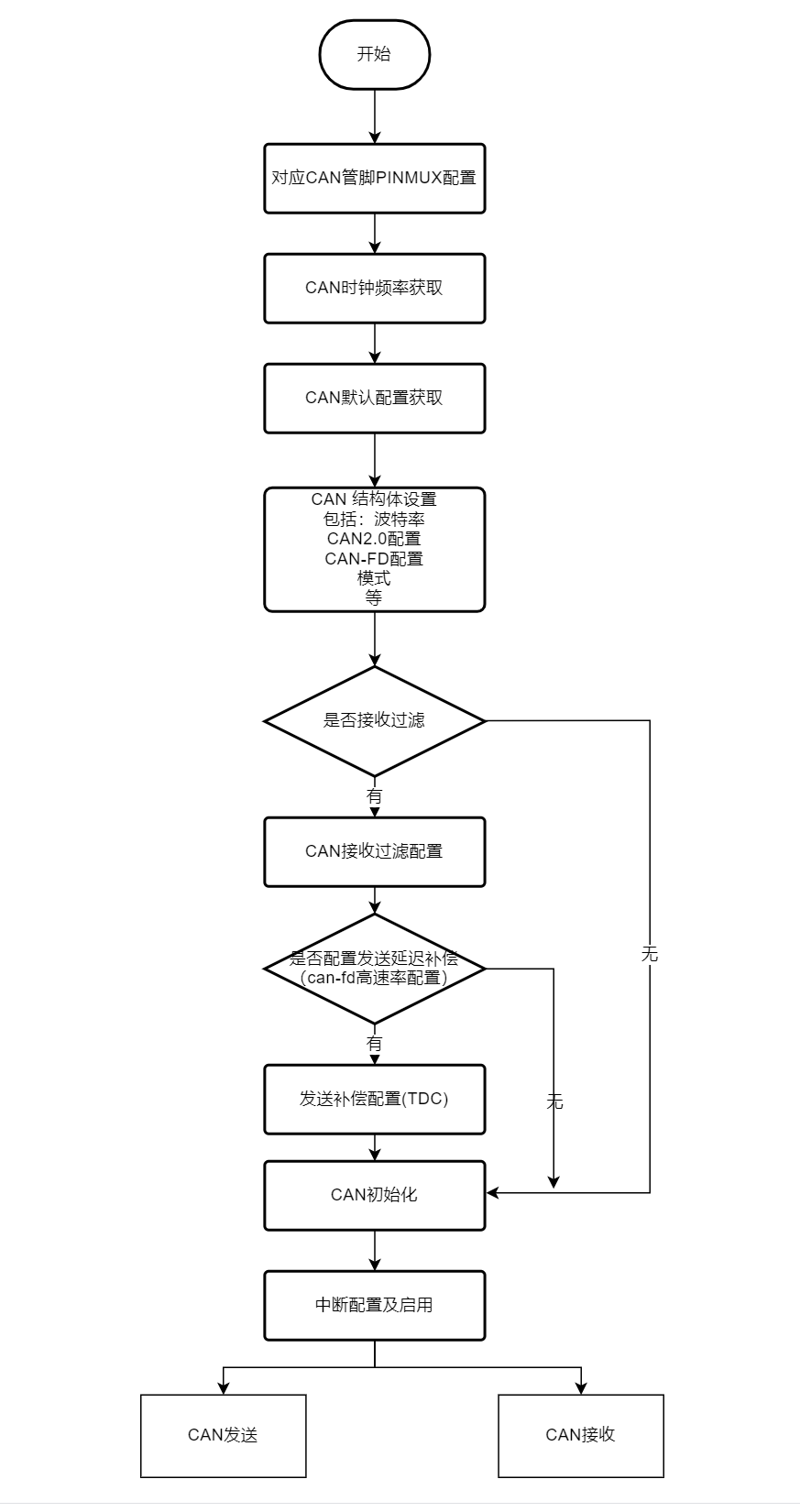

CAN控制器的CAN2.0和CAN-FD配置流程如下图。
4. 样例
4.1 内部回环样例
需求：
1.CAN-FD协议
2.波特率2.5Mbps
3.内部回环模式
4.数据载荷64字节
5.遍历can-id从0~2047（11位标准ID）
6.每帧数据确保不同
7.阻塞发送、非阻塞接收(非中断模式)
8.对比接收和发送的数据包是否相等，并输出结果
void board_can_loopback_test(void)
{
bool result;
uint32_t error_cnt = 0;
uint32_t can_src_clk_freq;
can_config_t can_config;
board_init_can(BOARD_APP_CAN_BASE);
can_src_clk_freq = board_init_can_clock(BOARD_APP_CAN_BASE);
can_config.baudrate = 1000000; /* 1Mbps */
can_config.baudrate_fd = 2500000; /*5Mbps*/
can_config.loopback_mode = can_loopback_internal; //内部回环
can_config.enable_canfd = true;
hpm_stat_t status = can_init(BOARD_APP_CAN_BASE, &can_config, can_src_clk_freq);
if (status != status_success) {
printf("CAN initialization failed, error code: %d\n", status);
return;
}
can_transmit_buf_t tx_buf;
can_receive_buf_t rx_buf;
memset(&tx_buf, 0, sizeof(tx_buf));
memset(&rx_buf, 0, sizeof(rx_buf));
tx_buf.dlc = can_payload_size_64;
tx_buf.canfd_frame = 1;
tx_buf.bitrate_switch = 1;
for (uint32_t i = 0; i < 2048; i++) {
tx_buf.id = i;
for (uint32_t j = 0; j < 64u; j++) {
tx_buf.data[j] = (uint8_t)i + j + 1;
}
can_send_message_blocking(BOARD_APP_CAN_BASE, &tx_buf);
can_read_received_message(BOARD_APP_CAN_BASE, &rx_buf);
result = can_buf_compare(&tx_buf, &rx_buf);
if (!result) {
error_cnt++;
can_set_transmitter_delay_compensation(BOARD_APP_CAN_BASE, 64, true);
hpm_stat_t status = can_init(BOARD_APP_CAN_BASE, &can_config, can_src_clk_freq);
if (status != status_success) {
printf("CAN initialization failed, error code: %d\n", status);
return;
}
printf("ID=%08x, result:%s\n", rx_buf.id, result ? "passed": "failed");
}
}
printf(" CAN loopback test for extend frame %s, error_cnt:%d\n", error_cnt == 0 ? "passed" : "failed", error_cnt);
}4.2 两路闭环收发样例
需求：
1.CAN2.0协议
2.波特率1000000,1Mbps
3.CAN0发送，CAN1接收
4.数据载荷8字节
5.CAN0阻塞发送，CAN1阻塞接收
6.对比CAN0发送包和CAN1接收包是否相同，并输出结果
7.压测100次，输出最终结果
void can0_can1_rxrx_loop_test(void)
{
pm_stat_t status;
can_config_t can_config;
bool use_canfd = false;
can_get_default_config(&can_config);
can_config.baudrate = 1000000; /* 1Mbps */
can_config.baudrate_fd = 5000000; /* 2Mbps */
can_config.enable_canfd = use_canfd;
board_init_can(HPM_CAN0);
board_init_can(HPM_CAN1);
uint32_t can_src_clk_freq0 = board_init_can_clock(HPM_CAN0);
uint32_t can_src_clk_freq1 = board_init_can_clock(HPM_CAN1);
hpm_stat_t status0 = can_init(HPM_CAN0, &can_config, can_src_clk_freq0);
if (status0 != status_success) {
printf("CAN initialization failed, error code: %d\n", status0);
return;
}
hpm_stat_t status1 = can_init(HPM_CAN1, &can_config, can_src_clk_freq1);
if (status1 != status_success) {
printf("CAN initialization failed, error code: %d\n", status1);
return;
}
printf("CMD_STA_CMD_CTRL(0xA0)= %08x\n", HPM_CAN0->CMD_STA_CMD_CTRL);
printf("F_PRESC = %08x\n", HPM_CAN0->F_PRESC);
printf("S_PRESC = %08x\n", HPM_CAN0->S_PRESC);
printf("TDC = %08x\n", HPM_CAN0->TDC);
uint32_t error_cnt = 0; bool result = false; can_transmit_buf_t tx_buf;
can_receive_buf_t rx_buf; memset(&tx_buf, 0, sizeof(tx_buf));
memset(&rx_buf, 0, sizeof(rx_buf));
tx_buf.id = 0x101; uint32_t id_max;
if (!use_canfd) {
tx_buf.dlc = can_payload_size_8;
id_max = 8;
} else {
tx_buf.dlc = can_payload_size_8;
id_max = 64;
tx_buf.canfd_frame = 1;
tx_buf.bitrate_switch = 1;
}
for(int index = 0; index < 100; index++)
{
for (uint32_t i = 0; i < id_max; i++){
tx_buf.data[i] = (uint8_t)(index+i);
}
can_send_high_priority_message_blocking(HPM_CAN0, &tx_buf);
can_receive_message_blocking(HPM_CAN1, &rx_buf);
result = can_buf_compare(&tx_buf, &rx_buf);
if (!result) {
error_cnt++;
printf(" CAN0->CAN1 for standard frame %s\n", result ? "passed" : "failed");
}
can_receive_message_blocking(HPM_CAN0, &rx_buf);
result = can_buf_compare(&tx_buf, &rx_buf);
if (!result) {
error_cnt++;
printf(" CAN1->CAN0 for standard frame %s\n", result ? "passed" : "failed");
}
}
printf(" CAN can0 can1 rxrx loop test for result: %s, error_cnt:%d\n", error_cnt == 0 ? "passed" : "failed", error_cnt);
}4.3 四路收发样例
需求：
1.CAN-FD协议
2.波特率2.5Mbps
3.数据载荷64字节
4.启用中断接收
5.CAN0/CAN1/CAN2/CAN3顺序发送数据
6.确保CAN0/CAN1/CAN2/CAN3 can-id不同
7.确保每次发送的数据包内容不同
8.分别对比每次一路CAN发送数据包和其它三路CAN接收的数据包是否相同，并输出结果
9.压测100次，并输出结果
static can_info_t s_can_info[] = {
{ .can_base = HPM_CAN0 },
{ .can_base = HPM_CAN1 },
#if defined(HPM_CAN2)
{ .can_base = HPM_CAN2 },
#endif
#if defined (HPM_CAN3)
{ .can_base = HPM_CAN3 },
#endif
};
volatile static bool has_new_rcv_msg_array[4];
volatile static can_receive_buf_t s_can_rx_buf_array[4];
SDK_DECLARE_EXT_ISR_M(IRQn_CAN0, board_can_isr0);
SDK_DECLARE_EXT_ISR_M(IRQn_CAN1, board_can_isr1);
SDK_DECLARE_EXT_ISR_M(IRQn_CAN2, board_can_isr2);
SDK_DECLARE_EXT_ISR_M(IRQn_CAN3, board_can_isr3);
void board_can_isr0(void)
{
uint8_t flags = can_get_tx_rx_flags(HPM_CAN0);
if ((flags & CAN_EVENT_RECEIVE) != 0) {
can_read_received_message(HPM_CAN0, (can_receive_buf_t *)&s_can_rx_buf_array[0]);
has_new_rcv_msg_array[0] = true;
}
can_clear_tx_rx_flags(HPM_CAN0, flags);
}
void board_can_isr1(void){
uint8_t flags = can_get_tx_rx_flags(HPM_CAN1);
if ((flags & CAN_EVENT_RECEIVE) != 0) {
can_read_received_message(HPM_CAN1, (can_receive_buf_t *)&s_can_rx_buf_array[1]);
has_new_rcv_msg_array[1] = true;
}
can_clear_tx_rx_flags(HPM_CAN1, flags);
}
void board_can_isr2(void)
{
uint8_t flags = can_get_tx_rx_flags(HPM_CAN2);
if ((flags & CAN_EVENT_RECEIVE) != 0) {
can_read_received_message(HPM_CAN2, (can_receive_buf_t *)&s_can_rx_buf_array[2]);
has_new_rcv_msg_array[2] = true;
}
can_clear_tx_rx_flags(HPM_CAN2, flags);
}
void board_can_isr3(void)
{
uint8_t flags = can_get_tx_rx_flags(HPM_CAN3);
if ((flags & CAN_EVENT_RECEIVE) != 0) {
can_read_received_message(HPM_CAN3, (can_receive_buf_t *)&s_can_rx_buf_array[3]);
has_new_rcv_msg_array[3] = true;
}
can_clear_tx_rx_flags(HPM_CAN3, flags);
}
void board_can0_1_2_3_txrx_loop_test(void){
hpm_stat_t status;
can_config_t can_config;
bool use_canfd = true;
can_get_default_config(&can_config);
can_config.baudrate = 1000000; /* 1Mbps */
can_config.baudrate_fd = 2500000; /* 5Mbps */
can_config.enable_canfd = use_canfd;
/* Initialize CAN */
for (uint32_t i=0; i < ARRAY_SIZE(s_can_info); i++) {
can_info_t *info = &s_can_info[i];
board_init_can(info->can_base);
info->clock_freq = board_init_can_clock(info->can_base);
status = can_init(info->can_base, &can_config, info->clock_freq);
if (status != status_success) {
printf("CAN %d initialization failed, error code: %d\n", i, status);
return;
}
printf("CMD_STA_CMD_CTRL(0xA0)= %08x\n", info->can_base->CMD_STA_CMD_CTRL);
printf("F_PRESC = %08x\n", info->can_base->F_PRESC);
printf("S_PRESC = %08x\n", info->can_base->S_PRESC);
printf("TDC = %08x\n", info->can_base->TDC);
can_enable_tx_rx_irq(info->can_base, CAN_EVENT_RECEIVE);
}
intc_m_enable_irq_with_priority(IRQn_CAN0, 1);
intc_m_enable_irq_with_priority(IRQn_CAN1, 1);
intc_m_enable_irq_with_priority(IRQn_CAN2, 1);
intc_m_enable_irq_with_priority(IRQn_CAN3, 1);
uint32_t error_cnt = 0;
bool result = false;
can_transmit_buf_t tx_buf[4];
uint32_t data_max;
memset(tx_buf, 0, sizeof(tx_buf));
for(int i = 0; i < 4; i ++)
{
tx_buf[i].id = i+1;
if (!use_canfd) {
tx_buf[i].dlc = can_payload_size_8;
data_max = 8;
} else {
tx_buf[i].canfd_frame = 1;
tx_buf[i].bitrate_switch = 1;
tx_buf[i].dlc = can_payload_size_64;
data_max = 64;
}
}
for(int index = 0; index < 100; index++)
{
for(uint32_t can_i = 0; can_i < 4; can_i++)
{
for (uint32_t i = 0; i < data_max; i++) {
tx_buf[can_i].data[i] = (uint8_t)(index+can_i+i);
}
}
for(uint32_t can_i = 0; can_i < 4; can_i++)
{
can_send_high_priority_message_blocking(s_can_info[can_i].can_base, &tx_buf[can_i]);
for(int j= 1; j < 4; j++)
{
printf("recv canid:%d\n", (can_i+j)%4);
while(!has_new_rcv_msg_array[(can_i+j)%4])
{
}
has_new_rcv_msg_array[(can_i+j)%4] = false;
result = can_buf_compare(&tx_buf[can_i], &s_can_rx_buf_array[(can_i+j)%4]);
if (!result) {
error_cnt++;
}
printf(" CAN%d->CAN%d for standard frame %s\n", can_i, (can_i+j)%4, result ? "passed" : "failed");
}
}
}
printf(" CAN can0 can1 rxrx loop test for result: %s, error_cnt:%d\n", error_cnt == 0 ? "passed" : "failed", error_cnt);
}划重点
使用HPM6750的CAN控制器，可以轻松实现4路CAN2.0/CAN-FD同时收发数据，易于实现CAN网络隔离以及网络中继的复杂需求，实现了工业网关的功能。
来源：先楫芯上人
免责声明：本文为转载文章，转载此文目的在于传递更多信息，版权归原作者所有。本文所用视频、图片、文字如涉及作品版权问题，请联系小编进行处理（联系邮箱：cathy@eetrend.com）。
